Articole



h3 nvr mare

NVR 4 CANALE REZOLUTIA full HD 1080p

P2P tehnologie, Onvif, Ethernet 1port, HDMI,rezolutie 720P/960P/1080P.

CMS producator, se poate viziualiza de la distanta prin internet/retea/smartphone - meniu avansat.

Specificatii tehnice

cod articol:  NVR4H3

Input      Video Input      4CH 1080P
Output      HDMI      1CH,Resolution:1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、
1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz
VGA      1CH,Resolution:1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、
1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz
Audio Output      Support
Encoding      Record      1920×1080/1280×960/1280×720/768×432/704×576
Video Encoding      4CH 1080P/4CH 960P/4CH 720P
SyncPlayback      1CH 1080P/1CH 960P
Record      Record/Snapshot      Manual Record/Snapshot、Scheduled、Motion Detection Record/Snapshot、Alarm Record/Snapshot、Playback Snapshot
Playback Mode      Time List & Event Playback
Backup Mode      Video Backup & Picture Backup

External      Audio Intercom      Support
Net Interface      1 RJ45 10M/100M Adaptive Ethernet Interface
Serial Interface      1 RS485 Interface
USB Interface      2 USB 2.0 Interface
Alarm In      N/A
Alarm Output      N/A

NetworkProtocol      TCP/IP、DHCP、UDP、SMTP、NTP、Cloudsee

HDD :    poate utiliza 1 HDD SATA(max 4TB)
Alimentare     12V/3A
Temperatura ambient     0-55 (grade C)
Grad de umiditate acceptat     10-90(procente)
Dimensiuni     258*190*42mm(L*D*H)
Telecomanda     NU
Mouse     DA

Suporta supraveghere telefon mobil     DA : iPhone/Android

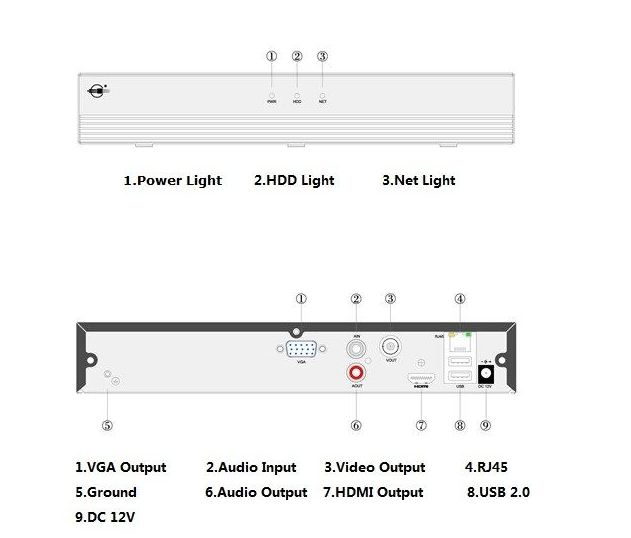

h3 nvr schema
